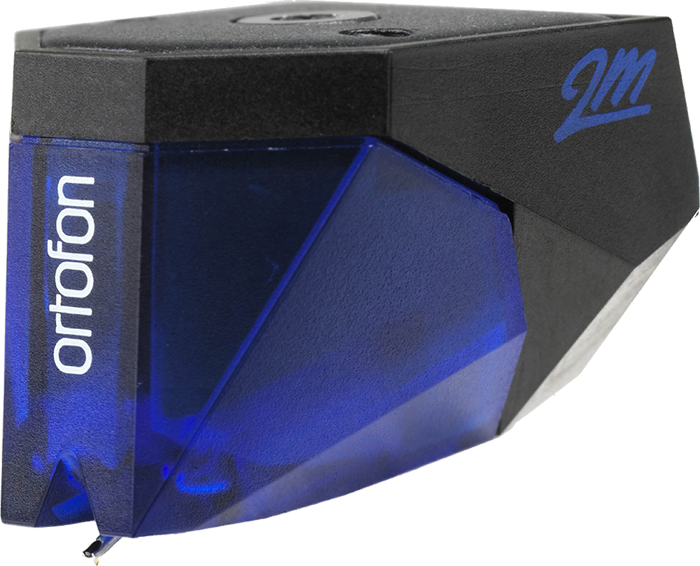

2M BLUE Element (Cartridge)

Ortofon

€ 249,00

The goal for any cartridge should be to reproduce the sound as close to the artists vision as possible, and the 2M blue takes you further on this journey of authenticity. With the 2M Blue you get serious about listening to vinyl.

Features:
The 2M Blue features a Nude Elliptical diamond and split pole pins with a copper wire.

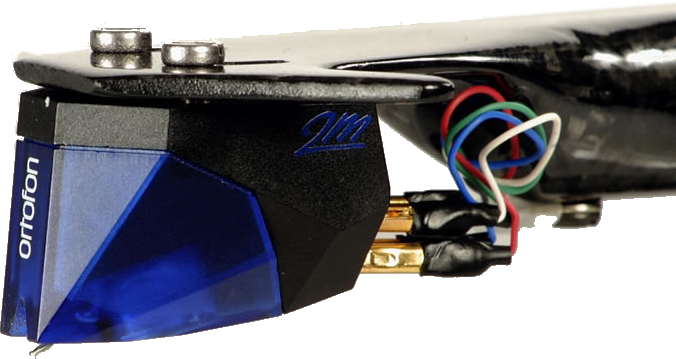

Designed for easy mounting of the cartridge, and for the weight and size to fit the most common turntables on the market today. The 2M Series provides excellent compatibility when used in an assortment of playback systems and with a wide variety of phono preamps.

The 2M Blue adds more dynamics and resolution, sounds more open and reproduces more details compared to the 2M Red model.

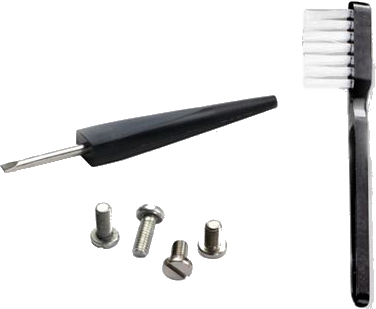

2M Blue Maintenance Set included the package:

1 x Stylus brush
1 x Screwdriver
2 x Screw M2,5 x 5
2 x Screw M2,5 x 7

Replacement stylus unit  - 2M Blue (interchangeable with 2M Red and 2M Silver)

  • Output voltage at 1000 Hz, 5cm/sec.  -   5.5 mV
  • Channel balance at 1 kHz  -   1.5 dB
  • Channel separation at 1 kHz  -  25 dB
  • Channel separation at 15 kHz  - 15 dB
  • Frequency response  -  20-20.000 Hz + 2 / - 1 dB
  • Tracking ability at 315Hz at recommended tracking force  -  80 µm
  • Compliance, dynamic, lateral  -  20 µm/mN
  • Stylus type  -  Nude Elliptical
  • Stylus tip radius  -  r/R 8/18 µm
  • Tracking force range  -  1.6-2.0 g (16-20 mN)
  • Tracking force, recommended  -  1.8 g (18 mN)
  • Tracking angle  -  20°
  • Internal impedance, DC resistance  -  1.3 kOhm
  • Internal inductance  -  700 mH
  • Recommended load resistance  - 47 kOhm
  • Recommended load capacitance  -  150-300 pF
  • Cartridge colour, body/stylus  -  Black/Blue
  • Cartridge weight  -  7.2 g
  • Replacement stylus unit  - 2M Blue (interchangeable with 2M Red and 2M Silver)
