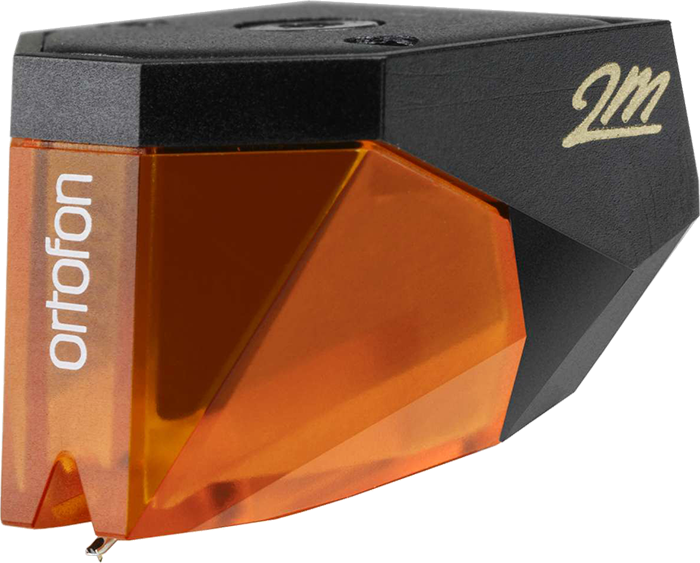

2M BRONZE Element (cartridge)

Ortofon

€ 419,00

The 2M Bronze is designed to give the music a whole new dimension of precision. Listening to your records with the 2M Bronze is like hearing them for the first time and you get to fall in love with the songs all over. That is what hi-fi means to us and that is what you get with the 2M Bronze.

Features:
The 2M Bronze features a Nude Fine Line diamond, which is particularly suited for demanding applications. The slim profile of the Fine Line stylus will track even the highest frequency information. Additionally, its larger footprint ensures reduced distortion and record wear. The 2M Bronze uses a special upgraded engine, featuring split pole pins with a silver plated copper wire.

We have optimized the design for ease of mounting the cartridge, and the weight and size to fit the most common turntables on the market today. The 2M Series provides excellent compatibility when used in an assortment of playback systems and with a wide variety of phono preamps.

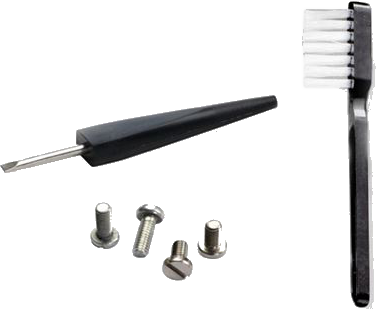

2M Bronze Maintenance Set included the package:

1 x Stylus brush
1 x Screwdriver
2 x Screw M2,5 x 5
2 x Screw M2,5 x 7
1 x Stylus pressure gauge

Replacement stylus unit2M Bronze (interchangeable with 2M Black and 2M Black LVB 250)

  • Output voltage at 1000 Hz, 5cm/sec.  -  5 mV
  • Channel balance at 1 kHz  -  1 dB
  • Channel separation at 1 kHz  -  26 dB
  • Channel separation at 15 kHz  -  15 dB
  • Frequency response  -  20-20.000 + 2 / - 0 dB
  • Tracking ability at 315Hz at recommended tracking force  -  80 µm
  • Compliance, dynamic, lateral  -  22 µm/mN
  • Stylus type  -  Nude Fine Line
  • Stylus tip radius  -   r/R 8/40 µm
  • Tracking force range  -  1.4-1.7 g (14-17 mN)
  • Tracking force, recommended  -  1.5 g (15 mN)
  • Tracking angle  -  20°
  • Internal impedance, DC resistance  -  1.2 kOhm
  • Internal inductance  -  630 mH
  • Recommended load resistance  - 47 kOhm
  • Recommended load capacitance  -  150-300 pF
  • Cartridge colour, body/stylus  -  Black/Bronze
  • Cartridge weight  -   7.2 g
  • Replacement stylus unit  -  2M Bronze (interchangeable with 2M Black and 2M Black LVB 250)
  • Ships within 3 days
