Hifi Phono Preamplifier
Tonar
€ 129,00

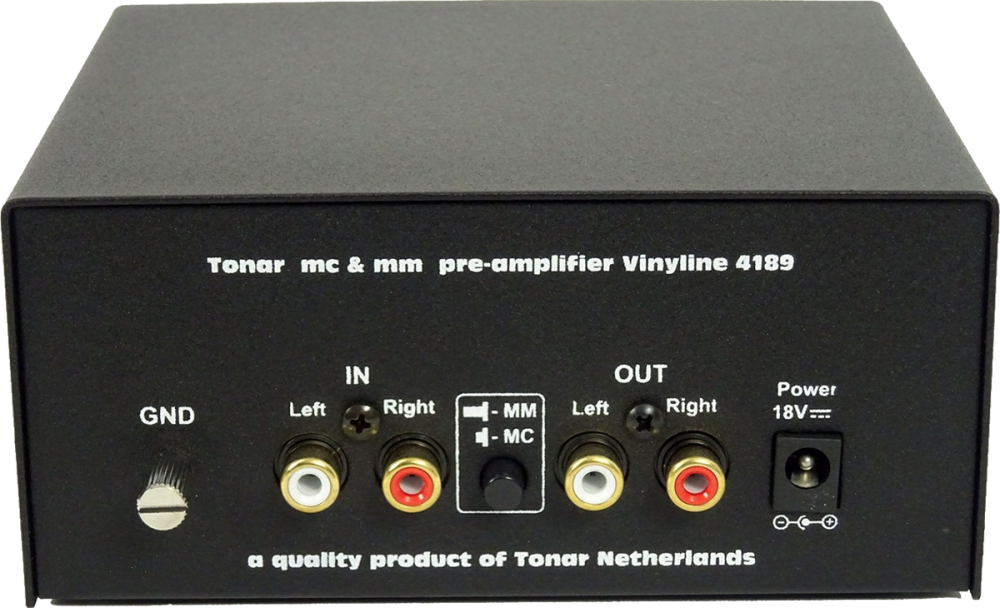

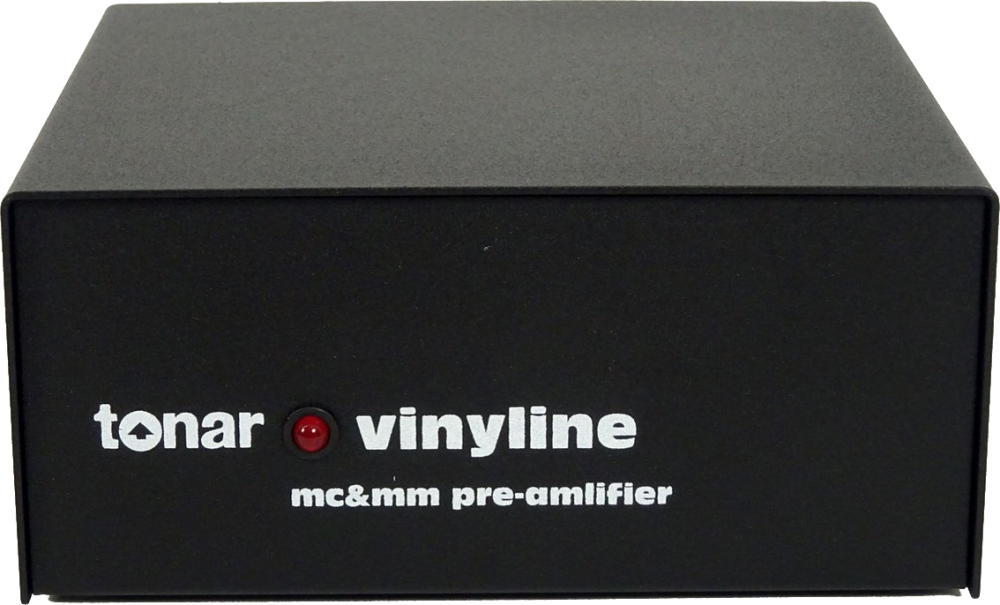

The Tonar Vinyline phono MM/MC Pre-Amplifier is a very affordable solution to connect High End phonograph cartridges whether moving magnet (MM) or moving coil (MC) to the AUX port of your amplifier. Using the switch on the back, you can change between high output MM to low output MC mode.
- Input (MM): 47 KΩ / 100 p.Farad
- Input (MC): 100 Ω / 100 p.Farad
- Output MM: 200 mV/1 KHz at 5mV/1KHz
- Output MC: 200 mV/1 KHz at 0.45 mV/1KHz
- Gain: MM: 32 dB / MC: 53 dB
- Noise floor: MM: -88 dB / MC: -79 dB
- THD: 0.005%
- RIAA curve acc.: 20 – 20.000 Hz / max: 0.5 dB
- Power supply: 16V/200 mA AC
- Width: 13.5cm Depth: 12.3cm Height: 6.3cm
- Ships within 3 days
